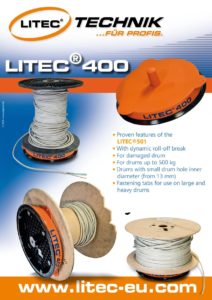

LITEC 400

The professional device of the newest generation which is able to wind up and unroll cables and wires of different kinds:

• thin wires
• cable rings
• hollow tubes
• cable drums, all sizes,
• as well usable for damaged cable drums
• with a dynamic unroll brake
• up to 500 kg

• Diameter:

  ca.  400 mm

• Weight:

  ca.  3  kg

• Load capacity:

  500  kg

• Edge height:

  ca.  60  mm

• Drum mounting:

  from 51 mm

• Other:

  Removable spike which receives drums with a low interior diameter (from 13 mm).

The Litec 400 may be heavy on the sides Cable drums by means of 3 screws of approx. 4 x 30 mm be attached. The 3 mounting lugs on Litec 400 make this possible.

A load-dependent, maintenance-free automatic Brake brings the device after a short, controlled Caster to stop as soon as the cable load is interrupted becomes. The roll-off brake is in her Braking effect with a lighter cable drum as with a heavier cable drum always according to the currently available Weight and takes into account that a heavy drum is easier when rolling.

The Litec 400 is up to max. 500 kg loadable.

The device allows trouble-free working in any direction without the rolling process supervised must be without cable clutter and bring a cost savings through rational work.

Advantages: compact and space-saving design, very smooth, flat, robust, maintenance-free, non-slip stable.

Made in Germany
